Hayward S-200 Replacement Parts

Click here for larger schematic
(Opens another window)

Qty	Item #	Product	Key	Price
	55-SX200Z7	S200 Body O-Ring		$35.23
	55-SX200G	Manual Air Relief Cap	1	$6.53
	55-SX200Z5	O-Ring, 13/16" O.D.	2a	$2.98
	55-SX200Z14	O-Ring, 1" O.D. (After 1980)	2b	$2.98
	55-SX200K	Access Cover	3	$47.14
	55-SX200Z6	O-Ring	4	$14.46
	55-SX200BT	Filter Tank Head (Top), Taupe	5	$336.00
	55-SX200Z1	Plastic Air Tube	9	$9.73
	55-SX200Z2	Air Tube Lock screw	10	$1.98
	55-SX200L	Top Diffuser, S-310S (1993 and prior)	11a	$34.46
	55-SX200C	Internal Diffuser Elbow Pipe (Top)	12	$32.51
	55-SX200C1	Internal Elbow Pipe (Bottom)	13	$32.51
	55-SX200Q	Lateral (Threaded Style)	15	$6.96
	55-SX200QN	Lateral (Pivot Style)		$7.53
	55-SX200MA	Replacement Lateral Ass'y w/ Laterals - S200	16	$64.99
	55-SX200H	Bottom Screen	17	$5.15
	55-SX200AA1	Filter Tank (Bottom) w/Drain Assembly Less Skirt, Ivory	18	$332.35
	55-SX200J	Filter Support Stand	19	$82.03
	55-SX200Z9	Gasket	20	$1.98
	55-SX200Z3	O-Ring (2")	21	$4.96
	55-SX200Z8	Drain Cap	21	$8.31
	55-SX200EB	Drain Pipe Assembly - includes Cap & Gasket	22	$20.83
	55-SX200D	Bulkhead Fitting	24	$21.18
	87-SP710X32	Hayward SP710X32 -Valve (S200,S240 Filter)	25	$124.99
	55-ECX270861	Pressure Gauge - Hayward OEM	26	$27.51
	55-SX200Z4	O-Ring	27	$3.96
	55-ECX1289	Standard Pump Mounting Base	28	$47.90
	55-SPX1105Z4	1 1/2" Elbow Hose Adapter	29	$6.46
	55-SPX1091Z2	1 1/2" Straight Hose Adapter	30	$4.96
	55-SX200Z12	1 9/16" I.D. x 8 1/4" Long Hose	31	$18.45
	55-ECX18028	Hose Clamp	32	$3.96
	55-ECX1291	Standard Pump/Filter Mounting Base	35	$178.30

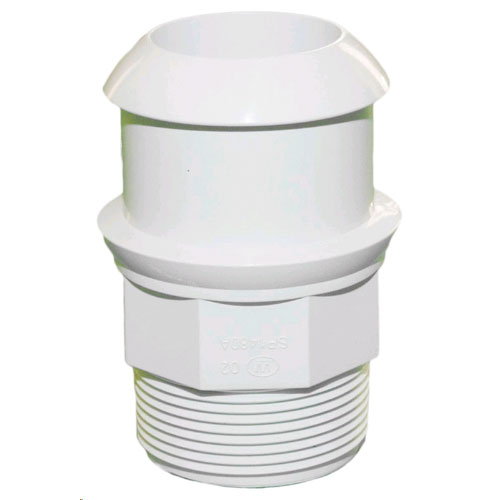

	55-SPX1480A	Union Ball End	36	$11.90

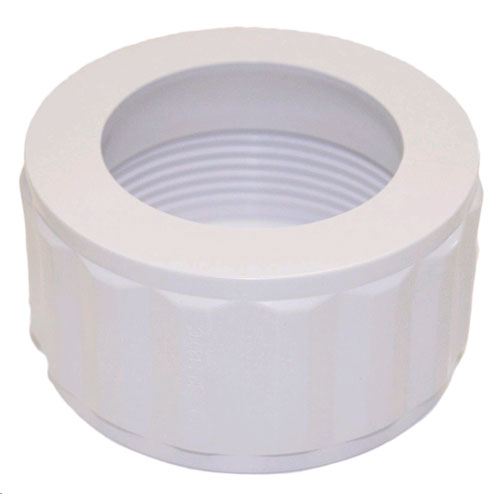

	55-SPX1480C	Union Nut	37	$8.10
	55-SPX1425Z6	O-Ring	38	$3.96
	55-SPX1485B3	Union Elbow w/Compression Assembly	39	$52.20

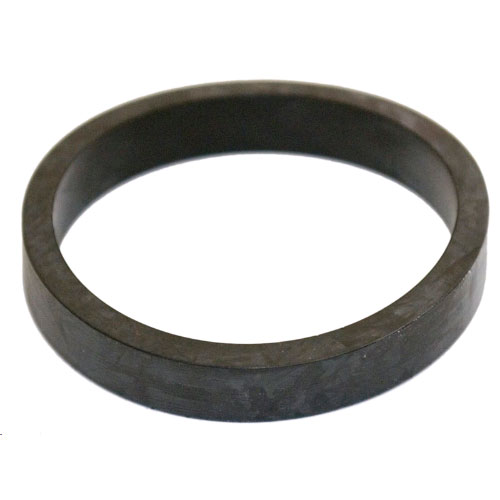

	55-SPX1485G	Compression Gasket	40	$4.96
	55-ECX1275	5/16" x 1 1/4" Mounting Screw	41	$3.96
	55-ECX1109	Washer	42	$0.96
	55-SPX1485DA	Compression Fitting w/Gasket	43	$24.70
	55-SX200Z10	Caplug , No. 21A (not illustrated)	*	$1.98
	55-APCOKIT323	Complete Replacement O-Ring Kit	*	$17.98
	55-SPX1485C	Gasket	*	$4.96
	55-S200KT	Wrench Tool for Body Housing (Optional)	*	$13.74
	55-SX202P	Lateral Pivot (After 1996)	*	$3.96
	55-ECX176855	1/4" - 20 Hex. Nut		$1.16
	55-ECX1642215	1/4" - 20 x 1 3/4" Hex. Head Bolt		$3.96
	55-ECX1306	5/16" x 1" Mounting Screw		$7.91
