Hayward MicroClear Replacement Parts

Click here for larger schematic
(Opens another window)

Qty	Item #	Product	Key	Price

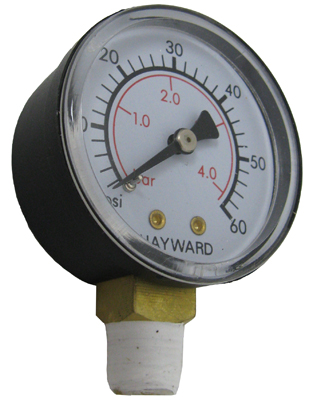

	55-ECX270861	Pressure Gauge	1	$20.51

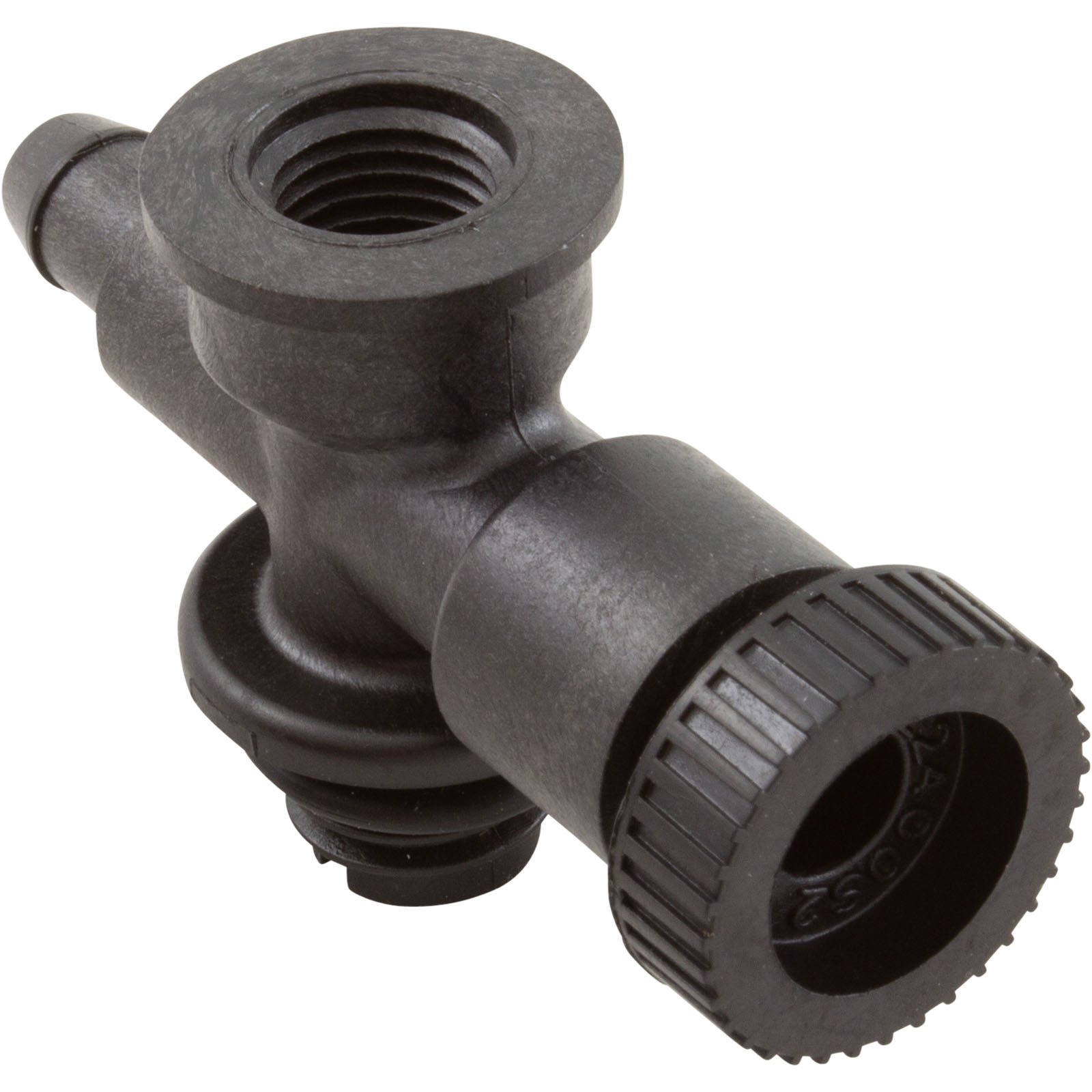

	55-DEX2400S	Relief Valve/Gauge Adapter Assembly	2	$28.54
	55-SX200Z5	O-Ring, 13/16" O.D.	3	$2.98
	55-DEX2400BT	Filter Head (C-2000)	4a	$265.50
	55-DEX3600BT	Filter Head (C-3000)	4b	$302.44
	55-DEX4800BT	Filter Head (C-4000)	4c	$334.62
	55-DEX6000BT	Filter Head	4d	$381.82
	55-ECX1109	Washer	6	$0.96

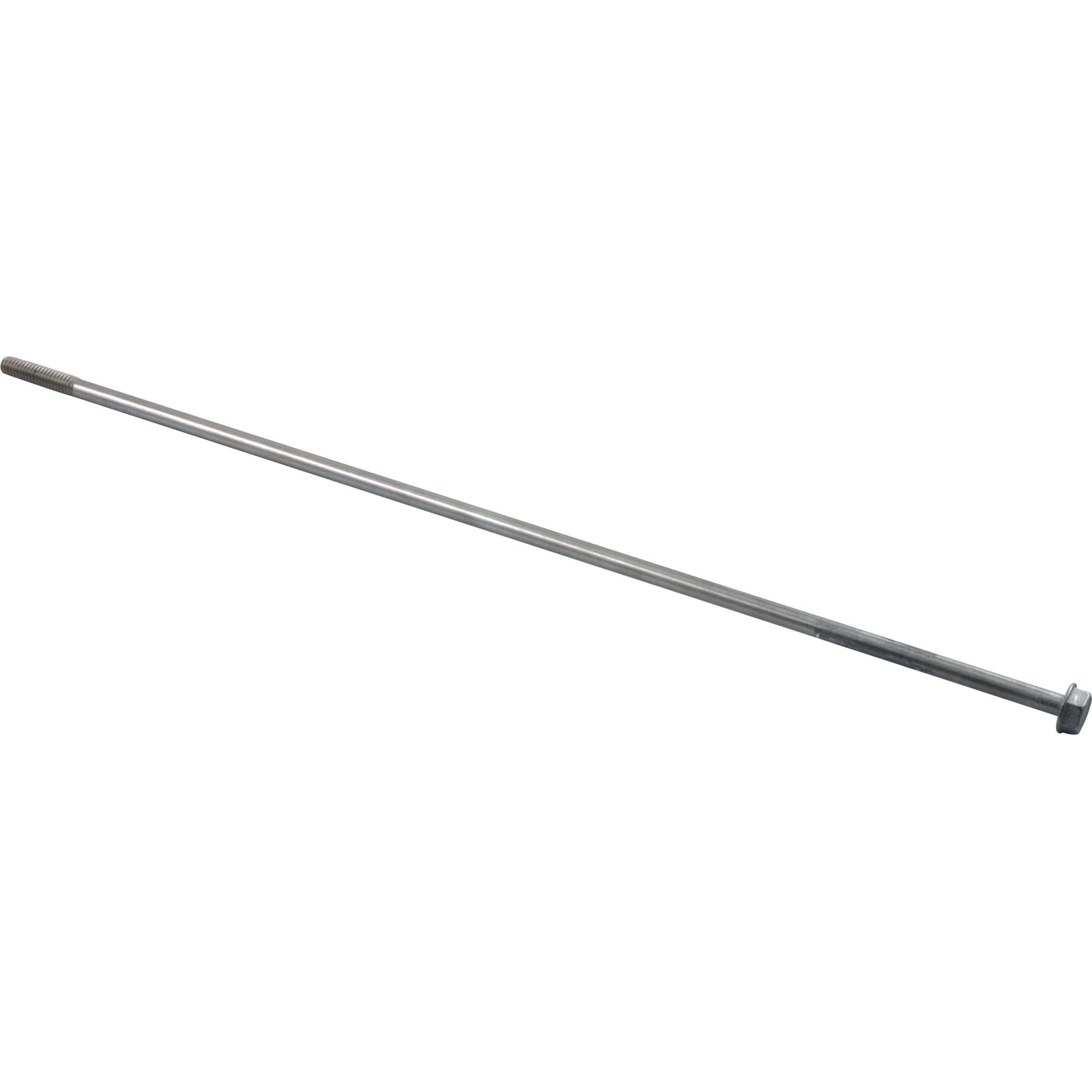

	55-DEX2400R	Retainer Rod	7a	$47.52
	55-DEX3600R	Retainer Rod	7b	$50.31
	55-DEX4800R	Retainer Rod	7c	$57.23
	55-DEX6000R	Retainer Rod	7d	$69.13
	55-DEX2400J1	Protector Cap (old style brass sleeve nut)	8	$0.96
	55-DEX2400JN	Brass Sleeve Nut	9	Discontinued
	55-DEX2400J	Clamp Assembly	10	$318.56

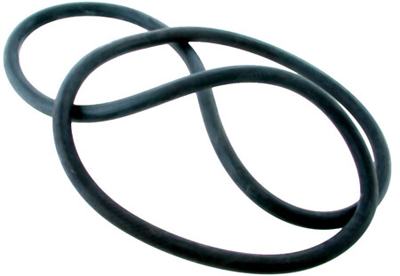

	55-DEX2400K	Filter Tank D-Ring	11	$32.70

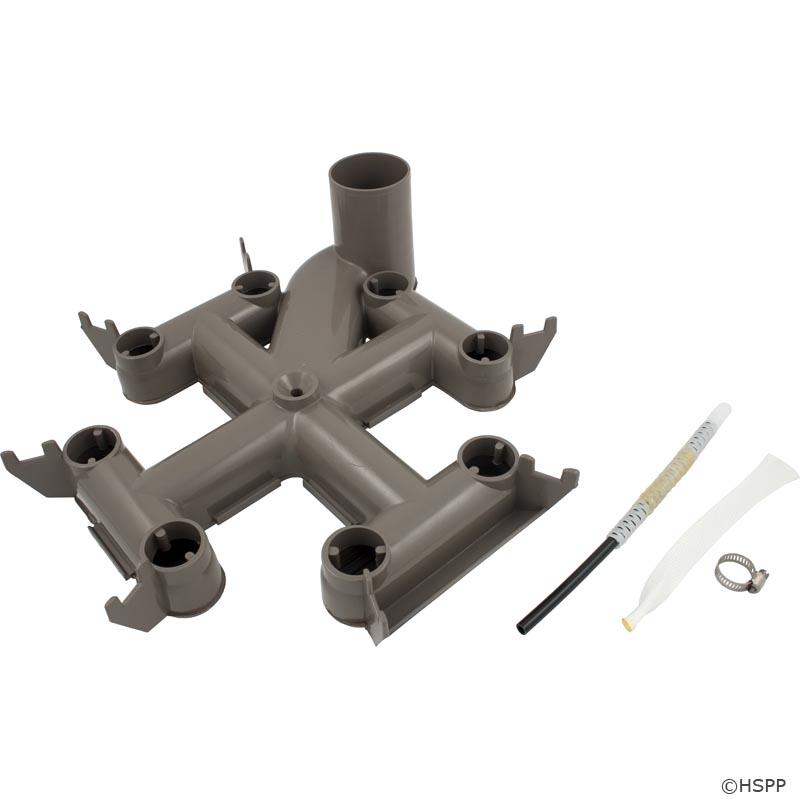

	55-DEX2400C	Top Collector Manifold W/Auto Air R	12a	$68.91

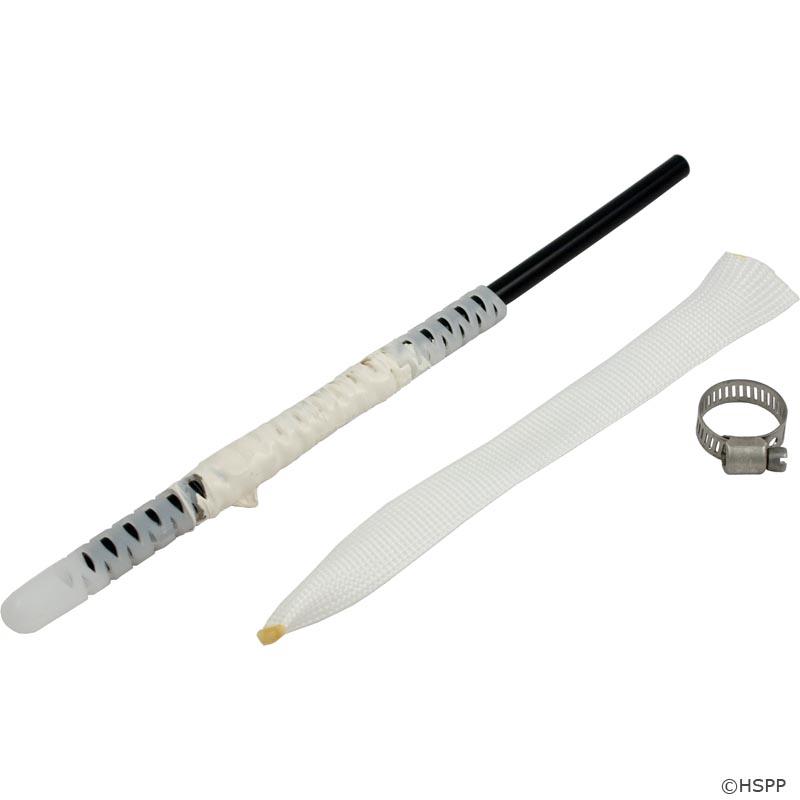

	55-DEX2400CR	Auto Air Relief Assembly	12b	$19.81

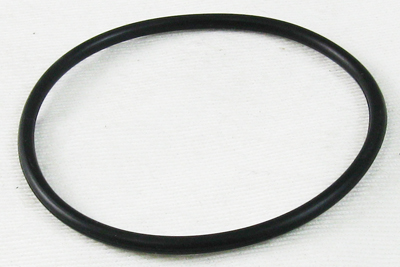

	55-DEX2400Z5	Outlet Elbow O-Ring	13	$5.34
	55-DEX2400EAB	Buttress Thrd Outlet Elbow Assoy W/	14a	$86.96
	55-DEX3600EAB	Buttress Thrd Outlet Elbow Assoy W/	14b	$89.44
	55-DEX4800EAB	Buttress Thrd Outlet Elbow Assoy W/	14c	$92.16
	55-DEX6000EAB	Buttress Thrd Outlet Elbow Assoy W/	14d	$97.90
	55-DEX2400DA	Filter Element	15a	$30.02
	55-DEX3600DA	Filter Element	15b	$37.54
	55-DEX4800DA	Filter Element	15c	$43.04
	55-DEX6000DA	Filter Element	15d	$49.45
	55-DEX2400DS	Filter Element - Short	16a	$30.72
	55-DEX3600DS	Filter Element - Short	16b	$37.95
	55-DEX4800DS	Filter Element - Short	16c	$47.71
	55-DEX6000DS	Filter Element - Short	16d	$48.27

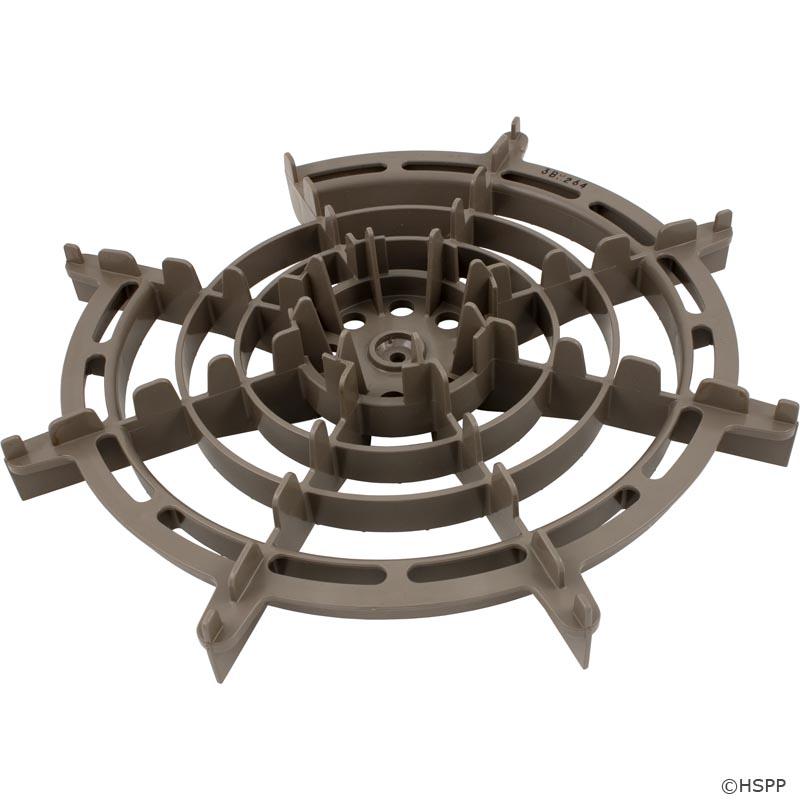

	55-DEX2400H	Filter Element Locator	17	$47.14
	55-DEX2400GAB	Buttress Thrd Inlet Elbow Assy	18	$111.51

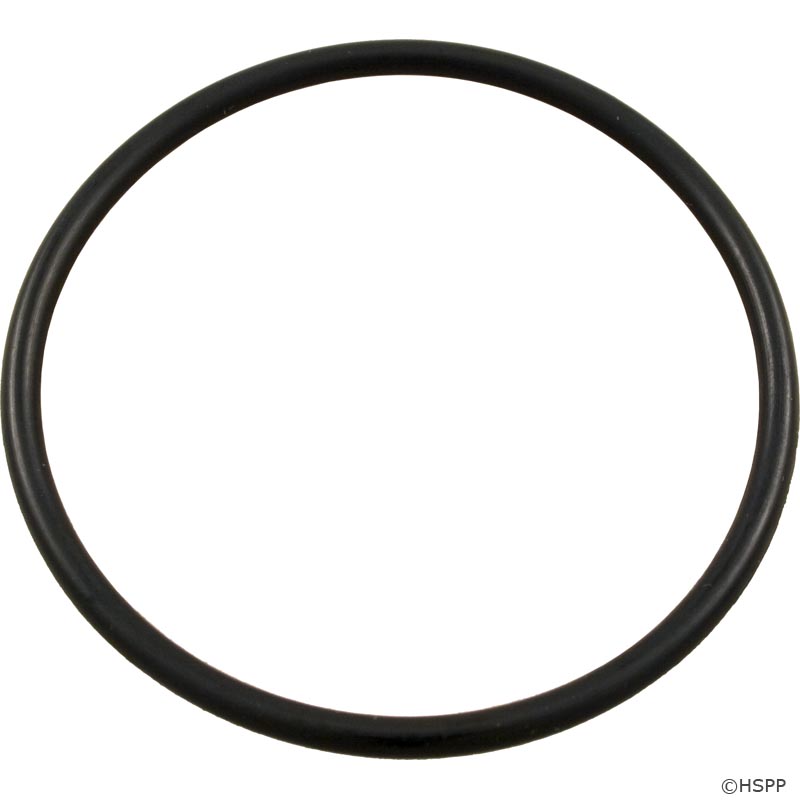

	55-SX200Z3	O-Ring (2")	19a	$4.96
	55-SX360Z1	O-Ring (S-311, S-360 - After 1995)	19b	$7.55
	55-SP1022C	1 1/2" Drain Plug w/O-Ring	21	$2.19
	55-DEX360F	Bulkhead Fitting (1995 and Prior)	20a	$28.32
	55-DEX360FB	Buttress Thread Bulkhead Fitting (1997 - )	20b	$28.32
	55-DEX2400A1T	Filter Body	21	$378.93
	55-DEX2400T	Element Spacer (De-2400 Only)	22	$26.72
	55-SX200Z4	O-Ring	24	$3.96
	87-SP710XR50	ProGrid - Vari-Flo Valve Assembly 1 1/2 Npt	25a	$129.99
	55-SP410X502S	USE SPX410X50S Slide Valve Assy	25b	$72.78
	55-DEX2400JKIT	Clamp Spring Assembly Replacement Kit (2 complete assemblies)	26	$43.42
	55-DEX2400J4	Discontinued Washer use 55-DEX2400JKIT	26a	$7.94
	55-DEX2400JS	Discontinued Spring use 55-DEX2400JKIT	26b	$7.29
	55-DEX2400J3	Discontinued Washer use 55-DEX2400JKIT	26c	$3.96
	87-SP715XR50	ProGrid - SP715XR50 Vari-Flo Valve Assembly - 2"		$149.99
	55-APCOKIT421	Complete Replacement O-Ring Kit		$24.57
	55-SP740DE	Selecta-Flo Valve Assoy - 2 Skt		$114.99
	55-DEX2400DC	Filter Element Cluster Assoy. - Com		$411.23
	55-DEX3600DC	Filter Element Cluster Assoy - Comp		$490.27
	55-DEX6000DC	Filter Element Cluster Assoy - Comp		$713.42
	55-DEX2400JN	Brass Sleeve Nut		Discontinued
	55-DEX4800DC	Filter Element Cluster Assoy - Comp		$576.05

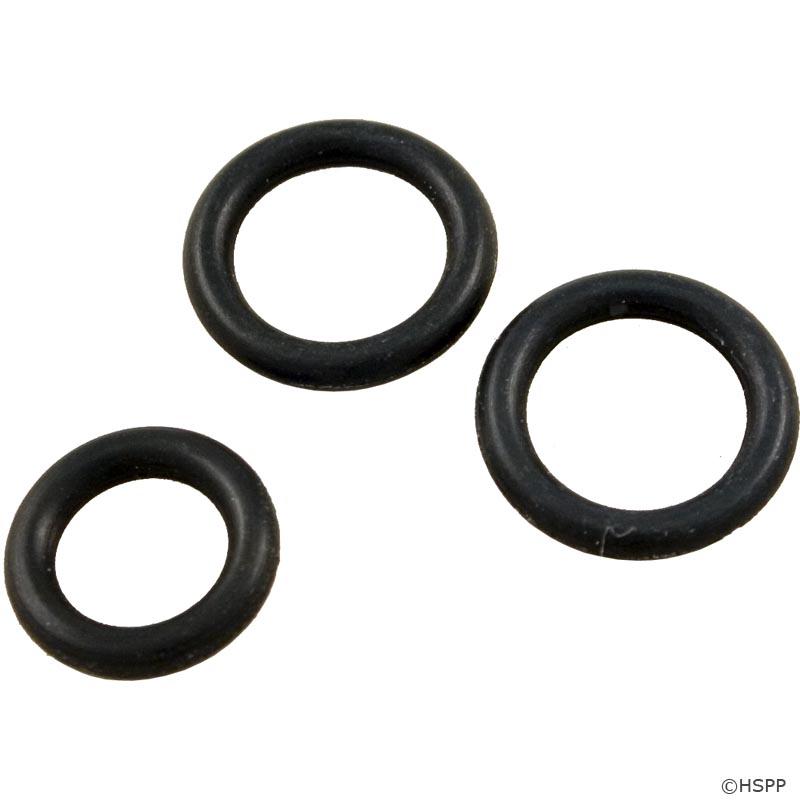

	55-DEX2400Z3A	O-Ring for Relief Valve Stem (Set of 3)		$8.93
